IVF Workstation

Construction and Work Table

• Main body fabricated from corrosion-resistant galvanized sheet metal with a durable powder coated finish for enhanced longevity and hygiene.
• Worktop constructed from high-grade, thick stainless steel for ease of cleaning and chemical resistance.

Filtration and Air Quality

• Dual-stage filtration:
  o Washable synthetic pre-filter (10 micron) as the primary barrier for coarse particulate matter.
  o HEPA filter (efficiency ≥99.97% at 0.3-micron particle size) to achieve Class 100 air quality for the workspace.
  o Optional VOC (volatile organic compound) filter for additional protection against airborne contaminants.

Air Flow and Blower

• Vertical laminar airflow provided via a balanced, imported, brushless direct-drive blower, ensuring minimal vibration and consistent air velocity
• Airflow rate designed to maintain a contamination-free environment with a noise level of less than 60 dB

Temperature Control and Heating

• Integrated work surface heating system delivers uniform temperature coverage across the main working area.

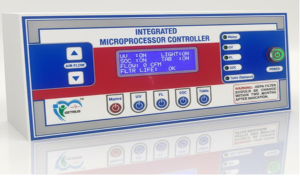

• Microprocessor-based dual digital display temperature controller offers precise and reliable temperature regulation.

Here’s a clearer and more professional way to describe that feature for your 6×2 ft. IVF workstation:

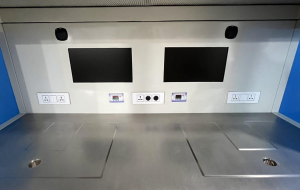

Two-Person Workstation with Independent Heating Zones
The 6 ft. x 2 ft. IVF workstation is designed to comfortably accommodate two operators simultaneously. The work surface is divided into two independent heating zones, one for each user. Each zone’s temperature can be controlled individually, allowing one station to remain active while the other is switched off when not in use. This design ensures energy efficiency, extends equipment life, and maintains optimal working conditions without unnecessary heating when only a single operator is present.Whether working solo or collaborating, you enjoy optimal comfort and reduced energy consumption.

Vibration Control

• Table supported by adjustable passive ant vibration levellers fitted with lockable castors for easy positioning and vibration isolation.
• Optional active vibration isolation systems are available for advanced applications.

Sterilization and Illumination

• Inbuilt UV germicidal sterilization lamp protects against microbial contamination.
• High-efficiency fluorescent or LED lighting provides uniform illumination of the workspace.
• Extra inbuilt electrical power sockets to support laboratory equipment and accessories.

Controls and Monitoring

• LCD control panel with independent ON/OFF control of airflow, heating, illumination, UV sterilization, and other parameters.
• HEPA filter replacement alarm, airflow indicator, and system status monitoring for enhanced operational safety.

Safety and Ergonomics

• Thick acrylic or tempered safety glass side panels for maximum visibility and operator protection.
• Ergonomically designed to support extended use with minimal fatigue; standard working height adjustable to user preference
• Integrated gas inlets or humidification systems available as optional features for advanced ART/IVF requirements.

Utility and Electrical

• Power requirement: 220–230 V AC, 50–60 Hz;

Construction and Work Table

• Main body fabricated from corrosion-resistant galvanized sheet metal with a durable powder coated finish for enhanced longevity and hygiene.
• Worktop constructed from high-grade, thick stainless steel for ease of cleaning and chemical resistance.

Filtration and Air Quality

• Dual-stage filtration:
  • Washable synthetic pre-filter (10 micron) as the primary barrier for coarse particulate matter.
  • HEPA filter (efficiency ≥99.97% at 0.3-micron particle size) to achieve Class 100 air quality for the workspace.
  • Optional VOC (volatile organic compound) filter for additional protection against airborne contaminants.

Air Flow and Blower

• Vertical laminar airflow provided via a balanced, imported, brushless direct-drive blower, ensuring minimal vibration and consistent air velocity
• Airflow rate designed to maintain a contamination-free environment with a noise level of less than 60 dB

Temperature Control and Heating

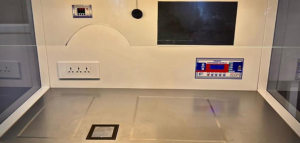

• Integrated work surface heating system delivers uniform temperature coverage across the main working area.
• Microprocessor-based dual digital display temperature controller offers precise and reliable temperature regulation.

Here’s a clearer and more professional way to describe that feature for your 4×2 ft. IVF workstation:

“Equipped with advanced stage heating glass to maintain the ideal sample temperature — ensuring consistency, precision, and superior results every time.”

Vibration Control

• Table supported by adjustable passive ant vibration levellers fitted with lockable castors for  easy positioning and vibration isolation.
• Optional active vibration isolation systems are available for advanced applications.

Sterilization and Illumination

• Inbuilt UV germicidal sterilization lamp protects against microbial contamination.
• High-efficiency fluorescent or LED lighting provides uniform illumination of the workspace.
• Extra inbuilt electrical power sockets to support laboratory equipment and accessories.

Controls and Monitoring

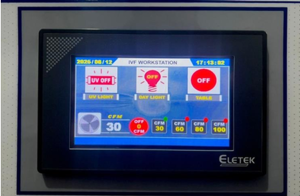

• HMI touch panel with independent ON/OFF control of airflow, heating, illumination, UV sterilization, and other parameters.

Safety and Ergonomics

• Thick acrylic or tempered safety glass side panels for maximum visibility and operator protection.
• Ergonomically designed to support extended use with minimal fatigue; standard working height adjustable to user preference
• Integrated gas inlets or humidification systems available as optional features for advanced ART/IVF requirements.

Utility and Electrical

• Power requirement: 220–230 V AC, 50–60 Hz;
