How Direct Counting Works
1Load 5 µL Sample
Use undiluted semen.
2Count Any 10 Grid Squares
The central 1 mm grid contains
100 squares, each measuring
0.100 × 0.100 mm.
100 squares, each measuring
0.100 × 0.100 mm.
3Read Concentration Directly
The sperm count corresponds directly
to concentration in millions/mL—no
additional factor required.
to concentration in millions/mL—no
additional factor required.
Precision Construction
Chamber Depth
10 µm
Central Grid
1 mm
Grid Division
100 squares
Individual Square
0.100 × 0.100 mm
Sample Volume
5 µL

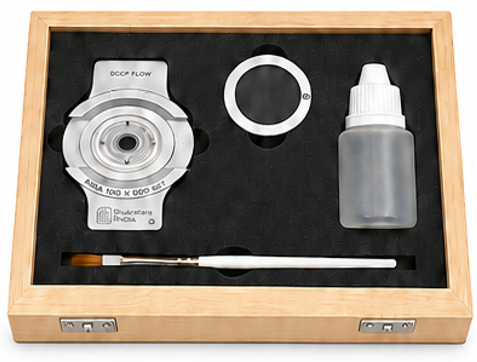

Four quartz pins maintain consistent spacing and support the cover glass at four contact points.
Key Advantages
Undiluted Sample
No semen dilution required.
No semen dilution required.
Single Focal Plane
10 µm depth reduces image blur and supports free sperm movement.
10 µm depth reduces image blur and supports free sperm movement.
+
Direct Calculation
No additional conversion factor required.
No additional conversion factor required.
Secure Cover Glass
Metal-ring design helps prevent lifting after sample loading.
Metal-ring design helps prevent lifting after sample loading.
Accuracy Check
Colour rings at four contact points provide a visual accuracy check.
Colour rings at four contact points provide a visual accuracy check.
↻
Reusable Design
Supports repeated use when cleaned correctly.
Supports repeated use when cleaned correctly.
✦
✦
Cleaning & Reuse
Before reuse, clean the Shukratara chamber with a non-bleach disinfectant solution.
Designed for repeated use with consistent accuracy without routine recalibration.
