Two Controlled Light Exposures
☼
A. Visible-Light
Exposure
Exposure
• Target ≥2.12 million lux-hours
• High-output visible-light
• Integrated lux monitoring
• High-output visible-light
• Integrated lux monitoring
UV
B. Near-UV
Exposure
Exposure
• Target ≥200 Wh/m²
• Spectral range 320–400 nm
• Integrated UV-energy
monitoring
• Spectral range 320–400 nm
• Integrated UV-energy
monitoring
i
Exposure targets shown are commonly applied for confirmatory photostability testing; final test conditions should follow the approved study protocol.

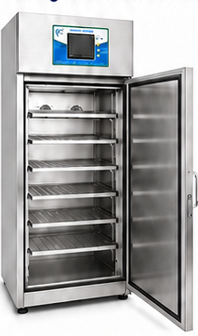

Designed for Controlled Photostability Testing
☼
Independent
Light Banks
Light Banks
â—·
Programmable
Exposure Dose
Exposure Dose
✓
Automatic
End-Point
Cut-Off
End-Point
Cut-Off
≡
Uniform Shelf
Illumination
Illumination
♨
Temperature
Management
Management
↑
UV-Safe Door
Interlock
Interlock
Basic Specifications
Visible-Light Exposure
≥2.12 million lux-hours
Near-UV Exposure
≥200 Wh/m²
Near-UV Spectral Range
320–400 nm
Light Monitoring
Independent lux and UV-energy sensors
Spectral Control
Time-based or accumulated-dose control
Temperature Range
20°C to 60°C
Temperature Accuracy
±0.5°C
Temperature Uniformity
±1°C
Humidity Control
Optional, 40% to 95% RH
Controller
PLC-based programmable controller
Display
Capacitive touchscreen HMI
Interior & Exterior
SS 304 stainless steel
Shelves
Adjustable perforated SS trays
Insulation
CFC-free PUF
Chamber Capacity
Custom
Power Supply
230 V AC, single phase, 50 Hz
Monitoring, Records & Protection
☼
Visible-Light
Dose
Dose
UV
Near-UV
Dose
Dose
♨
Chamber
Temperature
Temperature
♧
Lamp Failure
Alarm
Alarm
â–¯
Door-Open
Interlock
Interlock
↑
Over-Temperature
Protection
Protection
↗
Set & Actual Value Logging
Logs exposure, temperature
and other key parameters.
and other key parameters.
♧
Exposure History
Records exposure profiles
across studies and chambers.
across studies and chambers.
â–¤
Optional 21 CFR
Part 11-Ready Package
Part 11-Ready Package
User access, audit-trail and
electronic records functionality.
electronic records functionality.
Typical Applications
âš—
Drug
Substances
Substances
â–£
Finished
Formulations
Formulations
â—ˆ
Primary
Packaging
Packaging
â—‡
Light-Protective
Packaging
Packaging
âš—
Pharmaceutical
R&D
R&D
Need Help Choosing the Right Equipment?
Tell us about your application and laboratory requirements. Our team will help you compare suitable options and select the equipment that best fits your needs.
